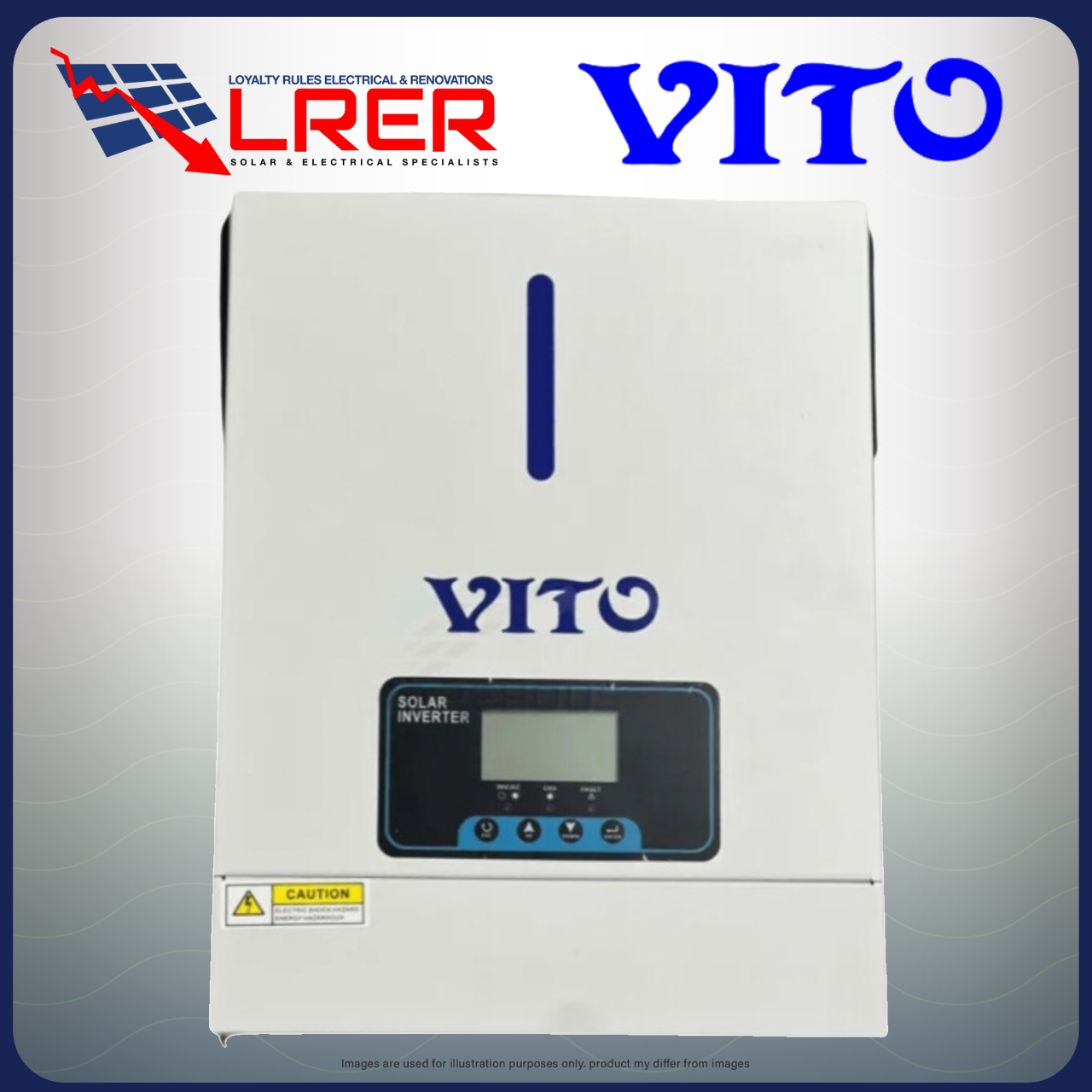

Vito 3.2 Kva 3000 watt 24v Hybrid Inverter SH3.5K24 This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
tags:
#VITO #LRER #HYBRIDPure Sine Wave
PV Input 500Vdc Max Built-in MPPT 100A
Detachable dust cover for harsh environment
Wifi remote monitoring optional
Support multiple output priority: UTL, SOL,SBU, SUB
EQ function to optimize battery performance and extend lifecycle
BATTERY
Battery Voltage 24v
Floating Charge Voltage 27v
OverCharge Protection 28.2v
Charging Method CC/CV
SOLAR CHARGER & AC CHARGER
Solar Charger TYPE MPPT
Max.PV Array Power 4000W
Max. PV Array Open Circuit Voltage 500V
PV Array MPPT Voltage Range Max. Solar Input Current 30V-500V
Max. Solar Charge Current 15A
Max. AC Charge Current 60A
Max. Charge Current(AC+PV) 100A
PHYSICAL
Dimensions, D x W x H(mm) 330X 278 X 98
Package Dimensions, D x W x H(mm) 400 X 365 X 174
Net Weight (Kgs) 4.4
Communication Interface RJ45 For Wifi
